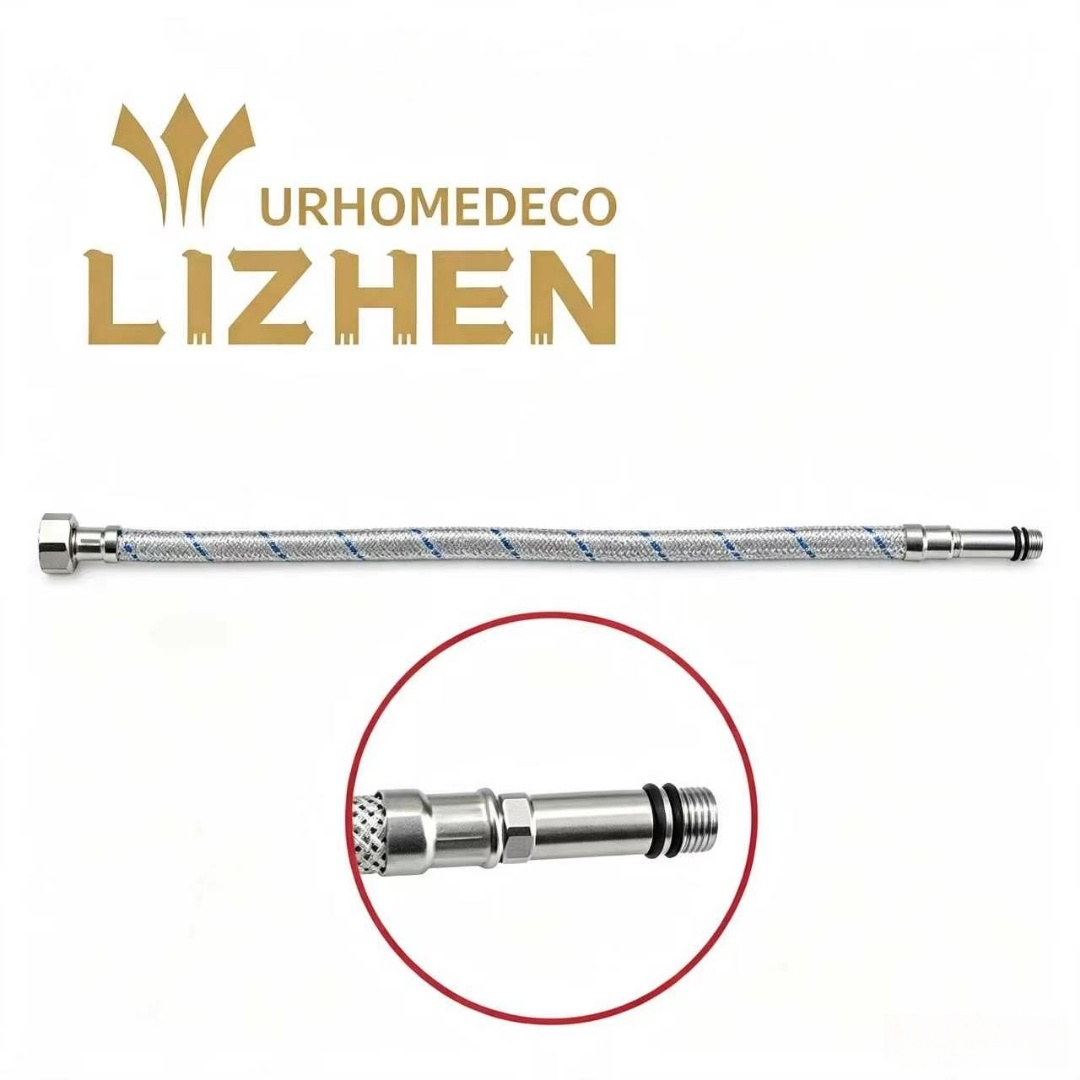

LZ-A31 Titanium Alloy Wire Single-End Braided Hose – F1/2" × M10×1, Steel Cap + Steel Core, 30–200cm
The LZ-A31 is a premium titanium alloy wire single-end braided hose, designed for reliable water supply connections where one end requires a smaller thread size. Featuring F1/2" × M10×1 connections with steel caps and steel cores, this hose offers secure, leak-proof connections and exceptional durability.
| Brand Name: | LIZHEN | Material: | Stainless Steel | Sample: | Free | MOQ: | 1000pcs |
|---|
Key Features
| Feature | Benefit |
|---|---|
| Titanium Alloy Wire Braiding | Superior strength, lightweight, and excellent corrosion resistance |
| F1/2" × M10×1 Connections | Versatile – fits both standard and specialized fixtures |
| Steel Caps + Steel Cores | Durable, leak-proof connections – built to withstand daily use |
| EPDM Inner Tube (Ø12mm) | Superior heat resistance and flexibility |
| Working Pressure: 1.6 MPa | Reliable performance under standard water pressure |
| Burst Pressure: 40 MPa | High safety margin – burst-proof design |
| Temperature Range: ≤90°C | Suitable for hot and cold water applications |
| Length Range: 30–200cm | Versatile – choose the perfect length for your needs |
Specifications
| Parameter | Detail |
|---|---|
| Model | LZ-A31 |
| Product Name | Titanium Alloy Wire Single-End Braided Hose |
| Connection | F1/2" × M10×1 |
| End Fittings | Steel Cap + Steel Core (35mm) |
| Inner Tube Material | EPDM (Ø12mm) |
| Braided Layer | Titanium Alloy Wire |
| Working Pressure | 1.6 MPa |
| Burst Pressure | 40 MPa |
| Medium Temperature | ≤90°C |
| Length Options | 30cm – 200cm (customizable) |
| Application | Water supply connections for faucets, heaters, appliances |
| Customization | Lengths and specifications available upon request |
| Manufacturer | Ningbo Lizhen Technology Co., Ltd |
Product Details
Titanium Alloy Wire Braiding
The outer layer features a durable titanium alloy wire braid – offering exceptional strength-to-weight ratio, excellent corrosion resistance, and long-lasting durability. Titanium alloy is known for its superior performance in demanding environments, making this hose ideal for both residential and commercial applications.
EPDM Inner Tube
The EPDM (Ethylene Propylene Diene Monomer) inner tube (Ø12mm) provides superior resistance to heat, aging, and water – making it ideal for both hot and cold water applications.
Steel Caps + Steel Cores
The F1/2" × M10×1 connections feature durable steel caps and steel cores (35mm), ensuring secure, leak-proof connections that withstand daily use.
High Pressure Rating
With a working pressure of 1.6 MPa and a burst pressure of 40 MPa, the LZ-A31 offers a wide safety margin – providing peace of mind against burst failures.
Temperature Resistant
Suitable for temperatures up to 90°C, this hose is compatible with hot water systems, water heaters, and other high-temperature applications.
Wide Length Range
Available in lengths from 30cm to 200cm, the LZ-A31 can be tailored to fit any installation – from compact under-sink spaces to longer appliance connections.
Why Choose LZ-A31?
| Advantage | Why It Matters |
|---|---|
| Titanium Alloy Braiding | Superior strength, lightweight, corrosion-resistant – premium quality |
| EPDM Inner Tube | Heat-resistant and durable – safe for hot water |
| Steel Caps + Steel Cores | Secure, leak-proof connections – reliable performance |
| F1/2" × M10×1 Connections | Versatile – fits both standard and specialized fixtures |
| 1.6 MPa Working Pressure | Handles standard household water pressure with ease |
| 40 MPa Burst Pressure | High safety margin – no burst worries |
| ≤90°C Temperature Rating | Works with hot and cold water systems |
| 30–200cm Lengths | One product, multiple lengths – custom fit |
| Customizable | Tailored specifications available on request |
Applications
| Setting | Use Case |
|---|---|
| Residential Kitchens | Faucet supply lines with M10 connections |
| Bathrooms | Basin and shower connections |
| Water Heaters | Hot and cold water connections |
| Washing Machines | Water supply hoses |
| Dishwashers | Appliance connections |
| Commercial Plumbing | Light commercial use |
| RV & Marine | Flexible water supply solutions |
| High-End Projects | Premium installations requiring superior materials |
Installation Instructions
-
Turn off water supply before installation
-
Check that rubber washers are in place at both ends
-
Hand-tighten the F1/2" end onto the corresponding fitting
-
Hand-tighten the M10×1 end onto the corresponding fitting
-
Secure with a wrench – do not over-tighten
-
Turn on water and check for leaks
Packaging & Logistics
| Parameter | Detail |
|---|---|
| Individual Packaging | Customizable (poly bag / color box / hang-tag) |
| Length Options | 30–200cm (custom lengths available) |
| Quantity per Carton | Contact sales for specific packing details |
| Shipping | Sea / Air / Express available |
| Lead Time | 15–30 days for bulk orders |
| Payment Terms | T/T, L/C, or negotiable |
Order Information
| Item | Detail |
|---|---|
| Stock Status | Available for bulk order |
| Sample Policy | Samples available upon request |
| MOQ | Flexible – contact for details |
| Length Options | 30–200cm |
| Customization | Lengths, logo, packaging, private labeling available |
Order now! Contact our sales team for samples, wholesale pricing, and customization options.
